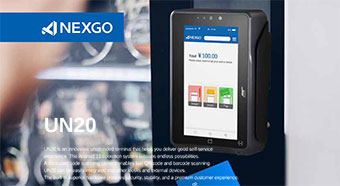

UN20
Specification & Download Purchase
Specification
  • OS

    Android 11

  • Waterproof and Dustproof

    Match IP65 standard

  • Audio

    1 x Speaker

  • Power

    DC:12~48V(Digital I/O, MDB Slave,

    Master & Executive), RS232

    AC:19~30V(MDB Master & Executive)

  • Processor

    Quad-core

    Cortex-A53, 2.0GHz

  • Card Readers

    Magnetic stripe cards

    Chip Cards

    Contactless Cards

  • Keys

    1 Reset Key, 2 Volume Keys

  • Physical

    146*101*57mm

    Cutout size: 108.7mm*86.4mm

    Device: 620 g

    Packaging: 1066 g (Including antenna 293 g)

  • Memory

    2GB RAM + 8GB ROM

    (Micro SD Card Supported, up to 128GB)

  • Communication

    4G/3G/2G

    Wi-Fi, 802.11a/b/g/n/ac, 2.4GHz&5GHz

    BT5.x

  • Positioning

    GPS, GLONASS or BeiDou

  • Environmental

    Operating Temperature : -20°C to 70°C

    Storage Temperature : -30°C to 80°C

    Relative Humidity : 10% to 95%(Non-Condensing)

  • Display

    5" HD (1280 x 720) Color Screen,

    Capacitive Touchscreen, Multi-Touch

  • Ports

    1 x USB Type-A, 1 x USB Type-C

    1 x LAN, 2 x RS232

    1 x MDB Master & Executive,

    1 x MDB Slave

    1 x Digital I/O, 1 x SMA

    1 x HDMI

  • Accessories

    MDB Cable

    Docking Station

  • Cameras

    Front: 2 MP, FF

    Bottom: 2MP, FF with Flashlight

  • Card Slots

    2 x SIM

    1 x SD

    4 x SAM

  • PIN Pad

    Software PIN Pad

    Fixed PIN Supported

  • Certifications

    PCI 6.x, EMV L1&L2, EMV CL1,

    QPBOC L1, Quickpass, Paypass,

    Paywave, TQM, JCB, Discover, Amex.

    IP65, IK09, ATEX, CE, RoHS, PTCRB
